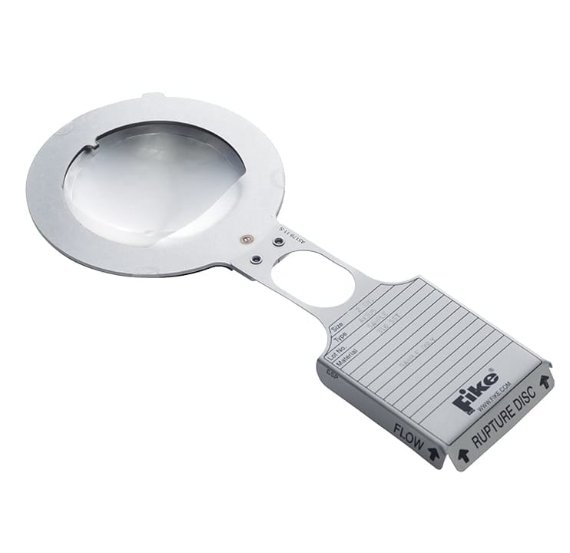

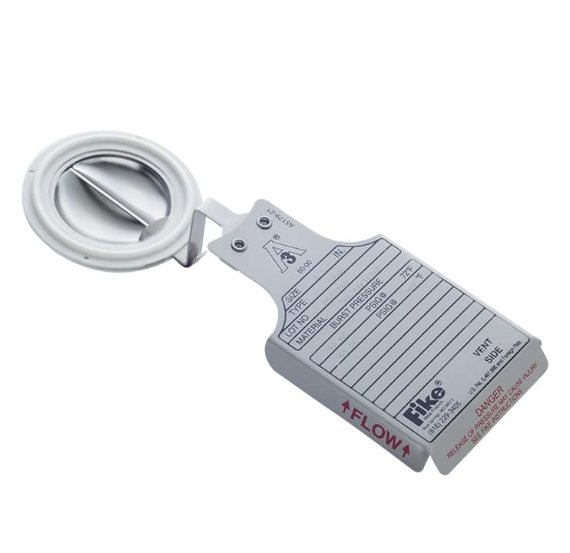

Fike® Rupture Discs for Overpressure Protection
Fike provides certified rupture discs to meet all applications for process industries including isolating pressure relief valves from corrosive materials, reducing involuntary emissions, insuring pressure relief in critical applications, and rupture discs for sanitary/pharmaceutical processes.

Features

  • Operate up to 95% of its marked burst pressure for burst pressures over 40 psig (2.76 barg), and up to 95% of the minimum of the burst tolerance at 40 psig (2.76 barg) and below.
  • Capable of cycling from full vacuum to 95% operating ratio in excess of 100,000 times, even at the lowest burst pressures available.
  • Disc seal and ring material: Hastelloy® C276 and 316/316L SST.
  • Operates in both gas and liquid applications.
  • Can be ordered with an optional FEP or PFA fluoropolymer liner on the process side, minimum burst pressure 30 psig (2.07 barg), maximum temperature 400°F (204°C).
  • ASME Certified.
